Sluice Valve
VALVES WITH A PERSONAL TOUCH … SMOOTH & LONG LASTING

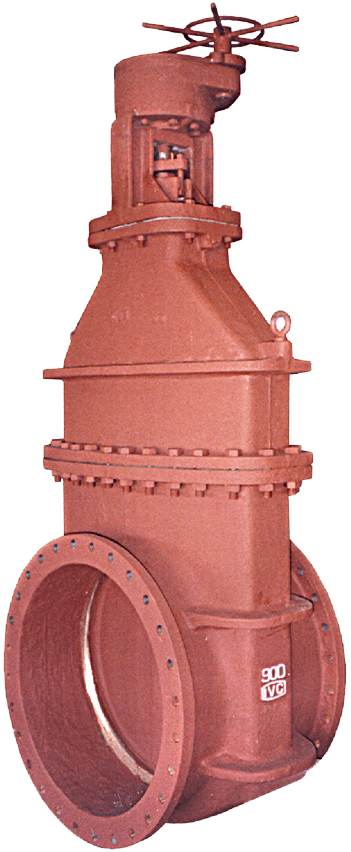

SLUICE VALVE DOUBLE FLANGED

FACE TO FACE: IS 14846 / BS EN 558 – 1 / ISO - DIS 5752 BASIC SERIES 3
FLANGE DRILLING: IS 1538 TABLE 4 & 6 / BS EN 1092 – 2 TABLE 8 & 9
STD. CONSTRUCTION: CAST IRON/DUCTILE IRON WITH BRONZE TRIM AND ST. STEEL SPINDLE
PRESSURE RATING : PN 10 UPTO 1500mm NB AND PN 16 UPTO 900mm NB.

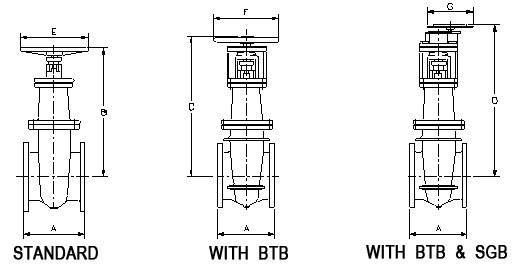

OPTIONAL FITTINGS: BTB - BALL THRUST BEARING ARRANGEMENT S & C - SHOE AND CHANNEL
WGB - WORM GEAR BOX SGB - SPUR GEAR BOX
DPA - DRAIN PLUG ARRANGEMENT SBG - SPUR - BEVEL GEAR BOX
HSA - HEAD STOCK ARRANGEMENT IDA - INDICATOR ARRANGEMENT
BSB - BACK SEAT BUSH BPA - BYPASS ARRANGEMENT
OUR DEVELOPMENT: GLANDLESS, DROP-TIGHT, METAL SEATED DUCTILE VALVES
OUR SPECIALITY: TAILOR MADE, MAINTENANCE FREE, ROBUST SCOTTISH DESIGN.
POWER OPERATION: ELECTRIC / PNEUMATIC
NOTE: 1) VALVES GENERALLY CONFORM TO IS 14846. (OTHER STANDARDS ON REQUEST)
2) VALVES IN CARBON STEEL / S G IRON (DUCTILE IRON) CAN BE GIVEN
3) OUTSIDE SCREW RISING SPINDLE VALVE (O/R) CAN BE GIVEN IN ALL SIZES
4) FOR SUFFICIENT BATCH QUANTITY VALVES TO BS:5163 CAN BE GIVEN
5) LOF AS PER IS:14846 – ALT-II CAN BE SUPPLIED FOR REPLACEMENT
6) SIZES ABOVE 1500mm CAN ALSO BE SUPPLIED
